Saliseal Sunshade Fabric / Bimini Top Without Frame / Boat Parasol / Bimini Top Fabric

Shade cloth / Bimini-Top Sunshade / Sun canopy /. Please note this is only the fabric; no hardware is included.

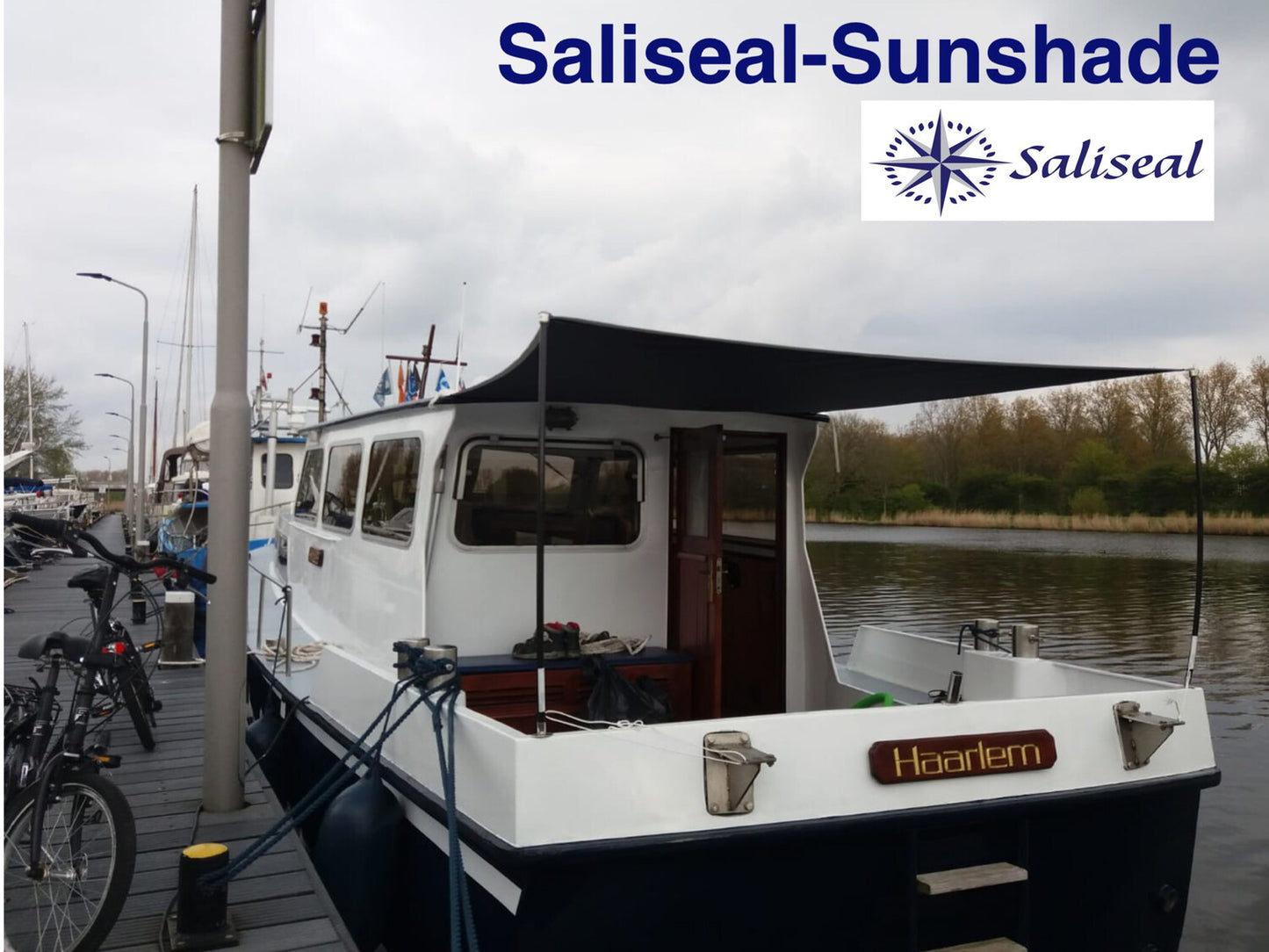

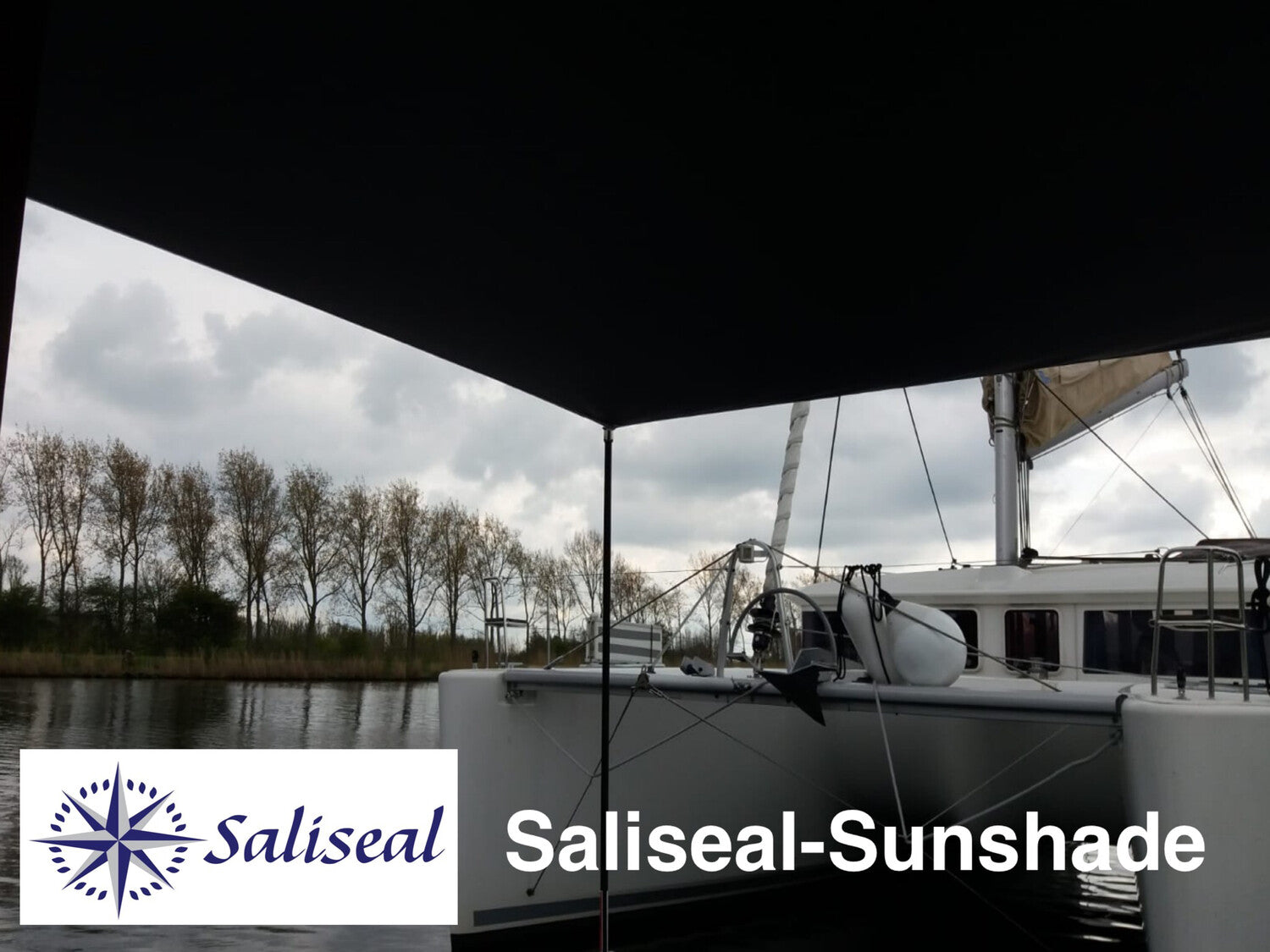

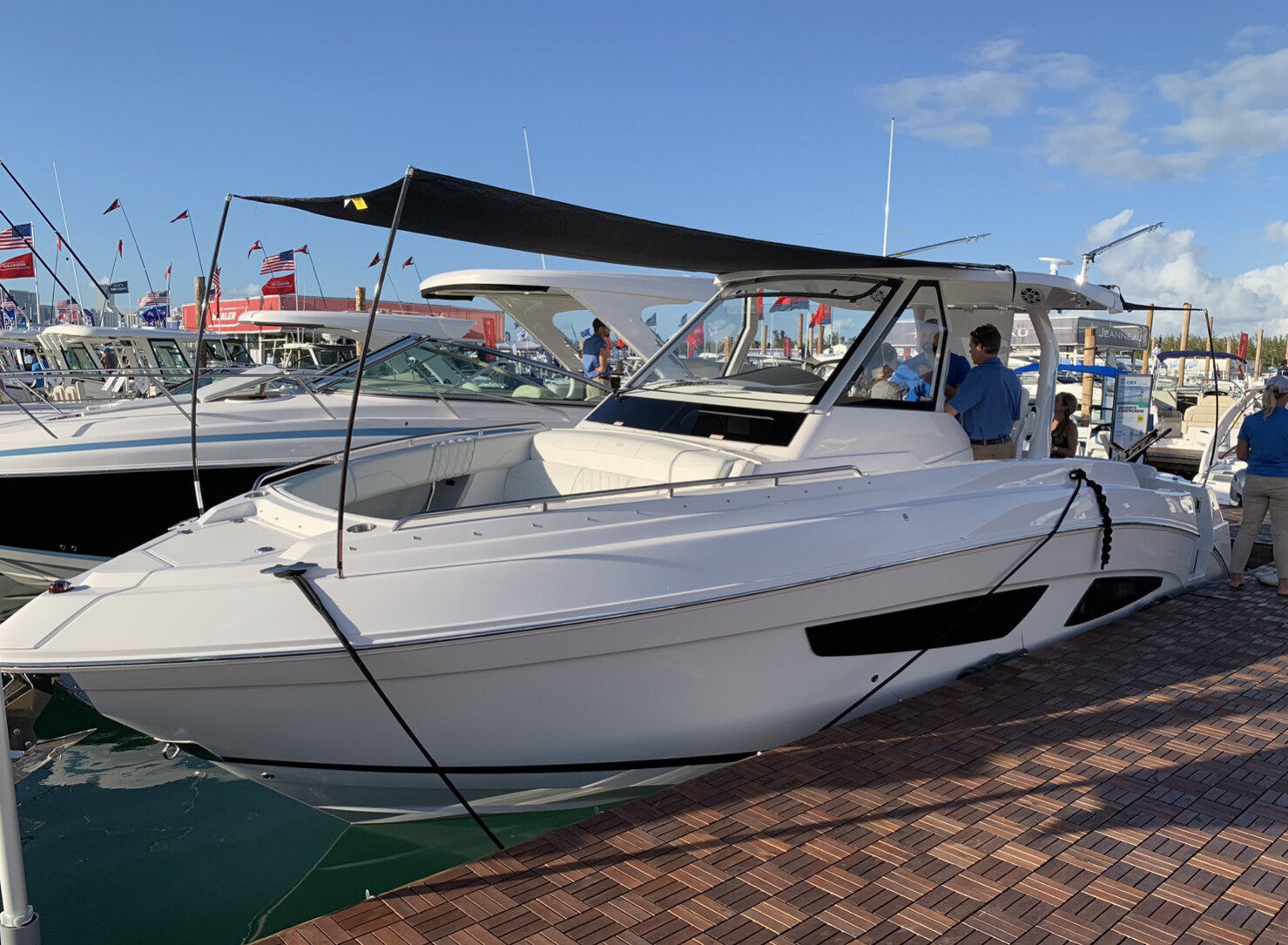

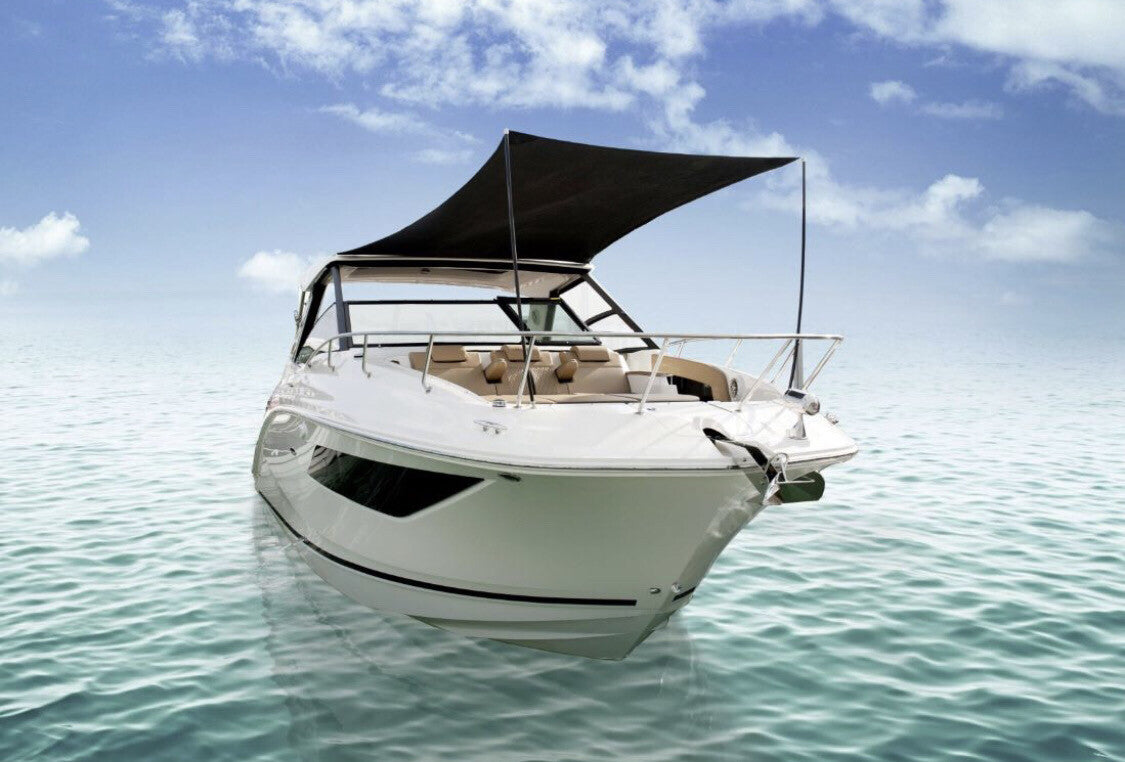

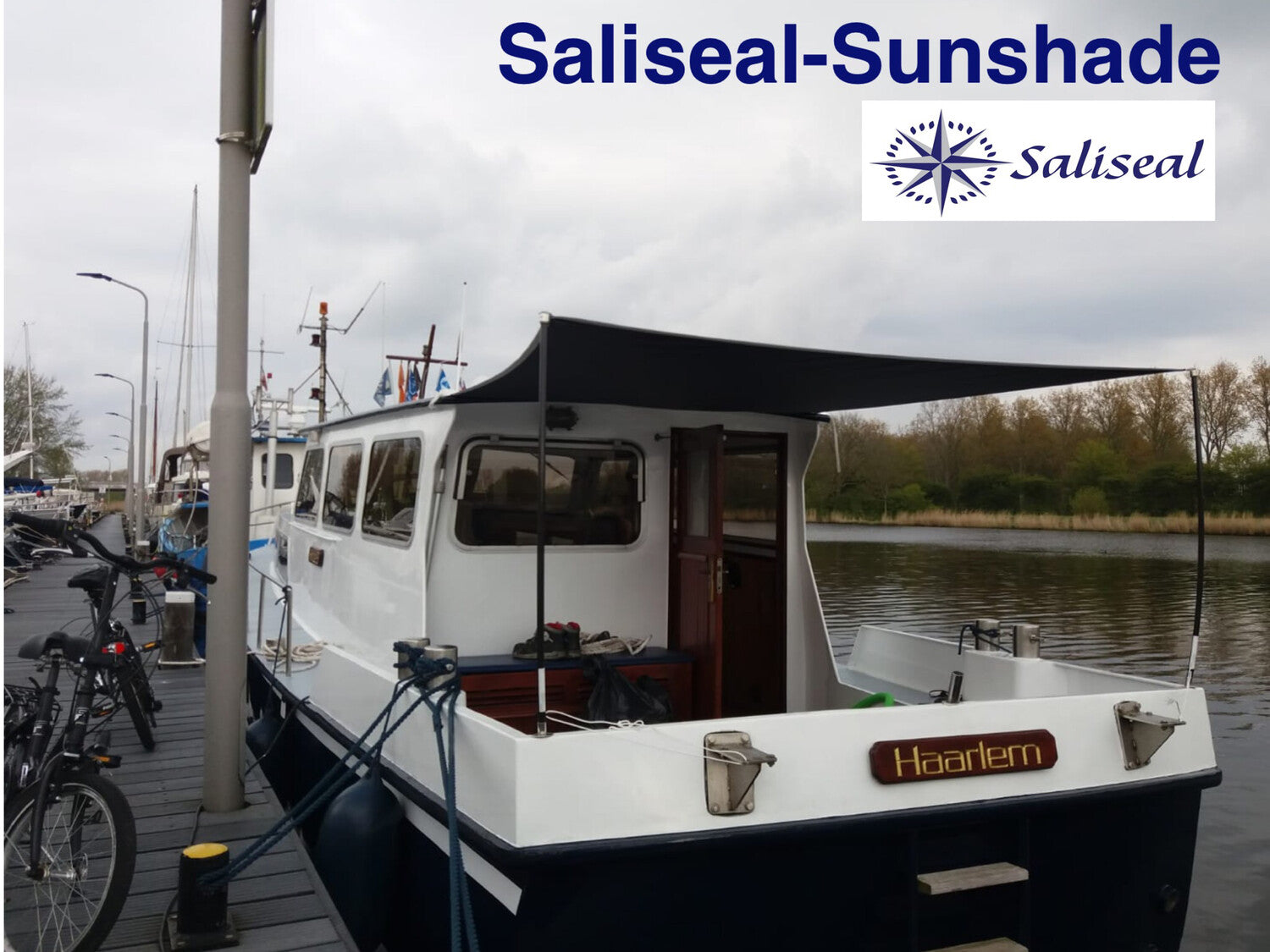

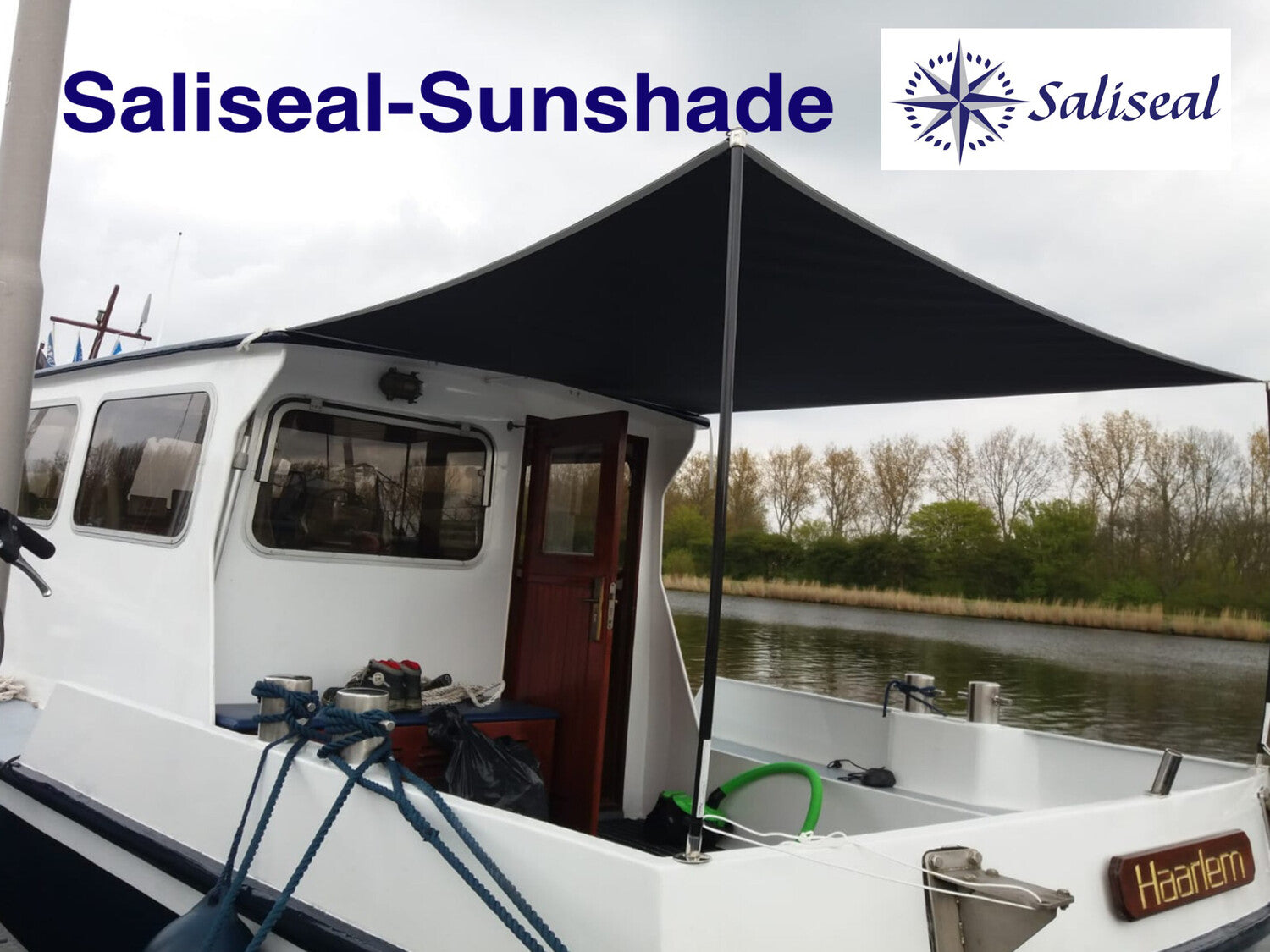

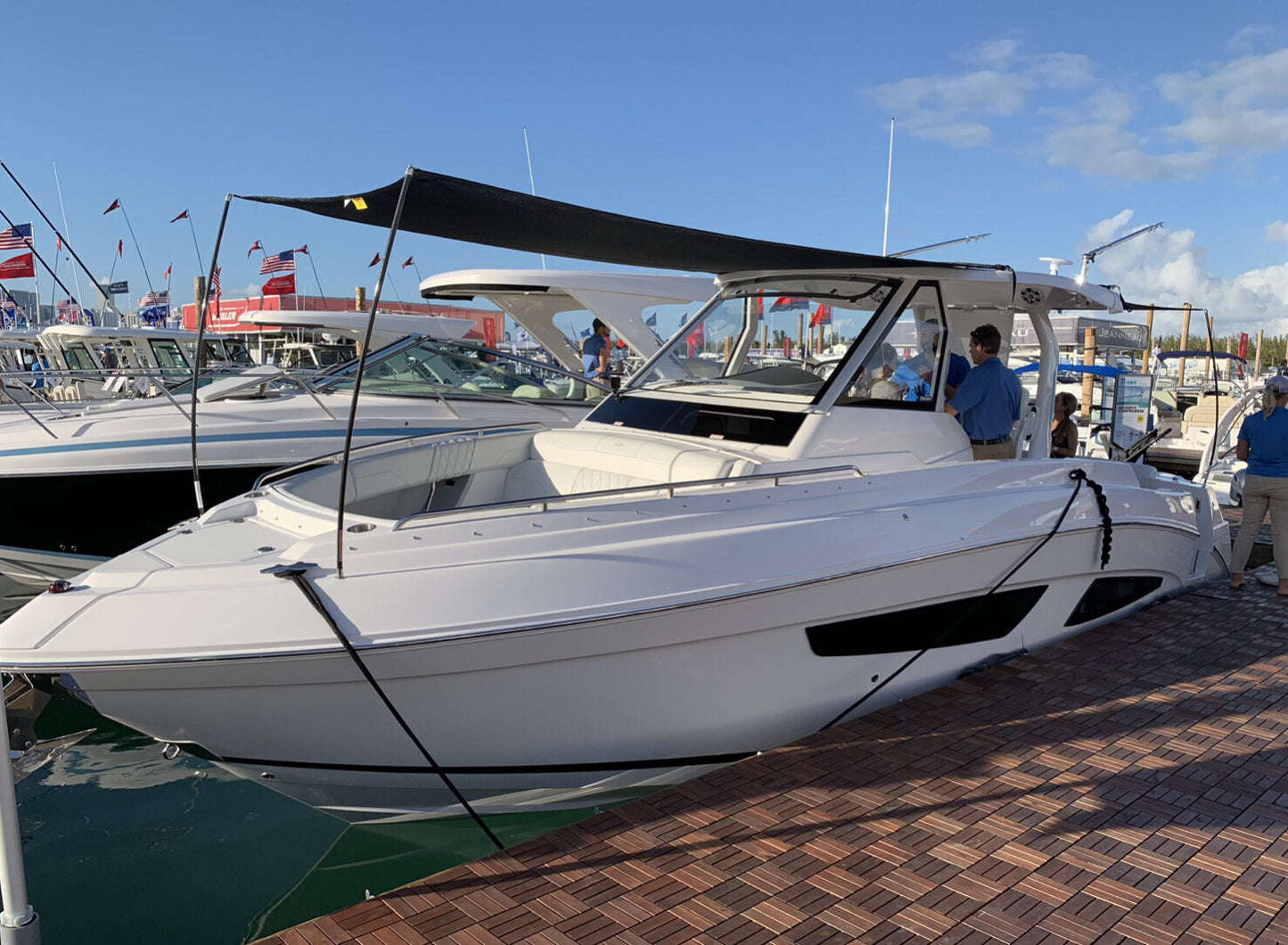

The Saliseal Sunshade fabric is designed to create shade on boats. The fabric features 4 D-rings at the corners and several stainless steel rings around the edge. You can use this fabric in combination with the Saliseal Sunshade hardware.

The 4 sides are slightly curved to keep the edges taut.

The Mehler Airtex fabric is a lightweight polyester fabric. This fabric is very strong and folds up compactly. See the colors in the photo.

If you use the fabric with the Saliseal Sunshade hardware, the size of the fabric must match the Sunshade deck plates or railing pieces without poles. The poles are set at a 15-degree angle, which tightens the fabric.

The Saliseal Sunshade fabric can be made from Mehler Airtex.

Maximum span 300 x 275 cm

Delivery time +/- 10 working days!

The size of the fabric depends on the height of the pole.

Step 1 measure: After mounting the deck sockets or railing pieces, measure the distance between the holes where the poles will be placed, both length and width.

Step 2 determine fabric size: Suppose in step 1 you measured a length of 198 cm between the front and rear deck or railing sockets and a width of 165 cm. Now that you know these measurements, use the formula below to determine the correct size of the fabric.

Formula:

When using 4 poles with a pole height of 1215mm, add 25 mm to all sides. The fabric will be 50 mm longer and wider than the measured distance in total. When using 2 poles and the fabric is attached to the boat on one side, then add 1 x 25 mm.

When using 4 poles with a pole height of 1535 mm, add 82.5 mm to all sides. The fabric will be 165 mm longer and wider than the measured distance in total. When using 2 poles and the fabric is attached to the boat on one side, then add 1 x 82.5 mm.

When using 4 poles with a pole height of 1845 mm, add 139.7 mm to all sides. The fabric will be 279.4 mm longer and wider than the measured distance in total. If you use only 2 poles and the fabric is attached to the boat on one side, then add 1 x 139.7 mm.

NOTE: If you mount the system entirely on a railing, it is better to secure it at 4 points instead of 6 because the railing mounting brackets point outward at a 45-degree angle with a 15-degree tilt. Between two poles in the middle, you want the fabric to be pulled outward only, not diagonally forward or backward. This is possible with pods in the deck.

Step 3 fabric design: Now that you know all the measurements, we can design the fabric. We have calculated the longest and widest measurements. These are essentially the corner dimensions.

Between the corners, it is advisable to make the fabric slightly concave; this ensures the fabric is nicely taut and prevents loose sides that flap. A straight fabric is possible but not preferred.

Delivery time +/- 10 working days!!

This product is made/ordered per order for you and therefore cannot be returned according to our right of withdrawal.
