Saliseal

Basic Biminitop stainless steel (Length 230 cm)

€165,00

Offer Out of stock

Taxes included. Shipping costs are calculated at checkout.

Number

What we promise:

3 years warranty on stitching, zippers, fabric, and manufacturing defects

30 days right of return easily arranged from your account

Sustainably made and environmentally friendly shipped

View all details

Beschrijving

Description

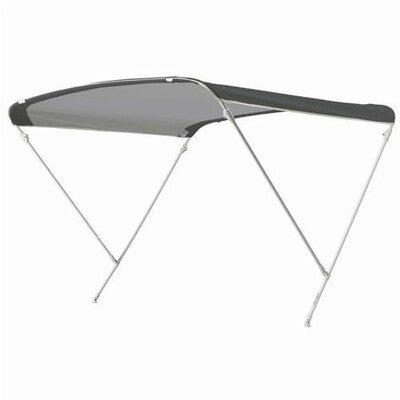

Bimini top/sunshade/boat parasol 2-arch length 170 cm X Width 130 cm made of aluminum! (can be mounted from 130 to 150 cm) NOTE in the bargain corner only the sizes that we actually have in stock can be purchased. If your size is not listed, please check the other aluminum bimini tops on our website.

LLow budget bimini top made of UV and water-resistant polyester fabric including storage bag and mounting materials! White aluminum frame 20 mm with plastic connectors.

Length 170 cm X Mounting width 130-150 and 150 to 170 cm height 115 cm. Easily foldable due to hinge

Specifications

TUBES:	Ø20 mm white aluminum
FRAME:	Can be disassembled

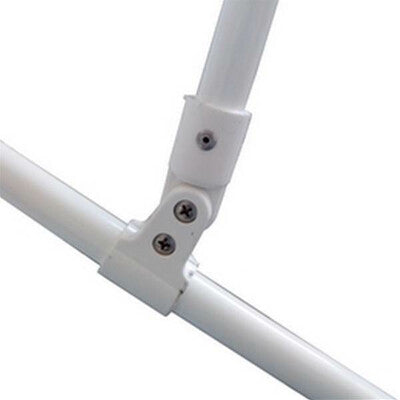

CONNECTORS & SCREWS	Plastic connectors
FABRIC:	100% resin-coated polyester Mehler Texnologies AIRTEX®, waterproof and UV resistant. Fabric complies with UNI EN 24920 standard. Available in 14 colors.

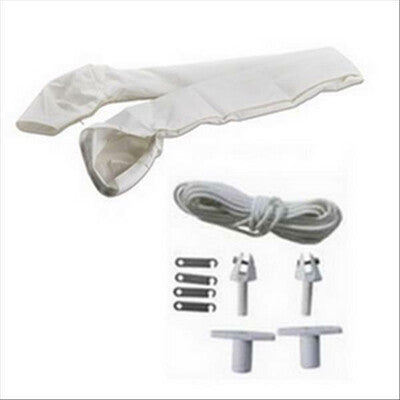

STANDARD ACCESSORIES:	Storage cover in the color of the bimini top with zipper, 10 m guy line, 4 cable tensioner plates. Storage cover in the color of the bimini top with zipper, 10 m guy line, 4 cable tensioner plates.
AVERAGE WEIGHT:	10 KG
CRUISING SPEED:	Max 45 km/h - 24 Knots
LENGTH:	170 cm
WIDTH:	130 to 150 and 150 to 170 cm
HEIGHT IN CLOSED POSITION (MEASURE D):	145 cm for bimini tops of 115 cm height

Measuring

The only thing you need to do before ordering the bimini top is to choose the length, height, and width of the bimini top that best fits the size of your boat.

The length (B) and the height (C) determine how much shade your bimini top will provide.

Determine where the bimini top will be secured and what the range of the top is when you unfold it. Also check where the top will be in the lowered position at the back of the boat (dimension D) (You can find this dimension under the Specifications heading). Make sure there is enough space at the front and back of the bimini top to mount the attachment eyes on the boat, where the bimini top straps will be attached.

Using a measuring tape, you can determine which length of the bimini top provides the desired amount of shade on your boat.

The main mounting point (A) is approximately in the middle of the bimini top on both sides of the boat. The flat straight deck plates supplied with the top are designed for mounting on flat surfaces. Optional brackets are available for railing mounting and side plates for side mounting.

After you have determined where the bimini top mount will be on the boat, measure the distance between these mounting points to determine the width (A) of the top you need.
The frame is adjustable in width so that it can be mounted within the specified range as indicated in the sizing when you order the bimini top. (see image above) Example for a width size of 150-170 cm: This means that the bimini top can be mounted at a width of 150 to 170 cm.
Choose the width that most closely matches your measurement of the width between the mounts.

You determine the correct height while standing in the boat. If you are mounting the bimini top on a small boat, do not go too high; if you can just stand, that's already good. The higher you go, the less shade you get. Especially on small rubber boats or fishing boats, you usually sit and there is no room to slide your seat if it comes into the sun. If you can stand slightly bent under the bimini top on such boats, it is actually already good.

Assembly

A QR code is included upon delivery. Scan the QR code with your iPhone camera or QR scanner app on Android to view the manual. Or view the manual via the links below.

Manual Dutch

Manual English

Manual German

Delivery time

Available from stock!

Right of withdrawal

This product is made/ordered for you per order and therefore cannot be returned according to our right of withdrawal.

Import costs

ATTENTION!! Only if you do not live in an EU member state, so outside Europe, extra costs may be charged for importing this product to your country. You can easily calculate these costs via this link with the HS code 6306.12.00

VAT is not calculated in our webshop if you live in a country that is not a member of the EU. The VAT is only deducted at checkout.
